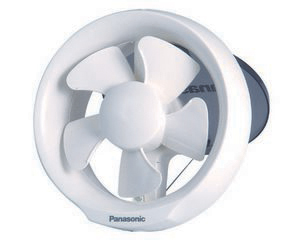

Panasonic - Round Ventilating Fan
FV-15WU 6" Round Ventilating Fan
177x97mm Comply with IPX4 (outside)
-
6 "/ 15cm
-
Round Type
-
Exhaust Only
-
Cord-Operated Shutter
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
7.7 |
|
R.P.M.
|
1,524 |
|
Air Volume (CMH) |
210 |
|
Air Volume (CFH) |
(7420) |
|
Noise dB (A) |
34 |
|
|
Item Code
: |
2335 |
|
Model : |
FV-15WU |
|
|
|
Panasonic - Round Ventilating Fan
FV-20WU 8" Round Ventilating Fan
237x98mm Comply with IPX4 (outside)
-
8 "/ 20cm
-
Round Type
-
Exhaust Only
-
Cord-Operated Shutter
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
16 |
|
R.P.M.
|
1093 |
|
Air Volume (CMH) |
380 |
|
Air Volume (CFH) |
(13350) |
|
Noise dB (A) |
34 |
¡@
¡@
|
|
Item Code
: |
2336 |
|
Model : |
FV-20WU
|
|
|
 |
Panasonic - Square Ventilating Fan
Comply with IPX4 (outside)
FV-15AU 6" Square Ventilating Fan
-
New HP motoring & bearing that prolong the product
durability
-
Modern blade design
-
high air volume and low noise level
-
Square Type
-
Exhaust Only
¡@
¡@
¡@
¡@ |
|
Item Code
: |
31061 |
|
Model : |
FV-15AU |
|
|
|

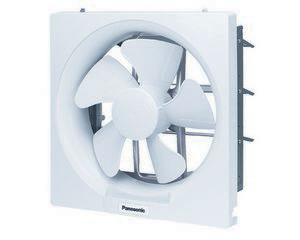

Panasonic - Square Ventilating Fan
FV-20AU 8" Square Ventilating Fan
306x302x142mm Comply with IPX4 (outside)
-
New HP motoring & bearing that prolong the product
durability
-
Modern blade design
-
high air volume and low noise level
-
Square Type
-
10 "/
25cm
-
Exhaust Only
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
22 |
|
R.P.M.
|
1245 |
|
Air Volume (CMH) |
580 |
|
Air Volume (CFH) |
(20480) |
|
Noise dB (A) |
38 |
¡@
¡@
¡@
¡@
¡@ |
|
Item Code
: |
31081 |
|
Model : |
FV-20AU |
|
|
|
Panasonic - Square Ventilating Fan
FV-25AU 10" Square Ventilating Fan
356x352x128mm Comply with IPX4 (outside)
-
New HP motoring & bearing that prolong the product
durability
-
Modern blade design
-
high air volume and low noise level
-
Square Type
-
10 "/
25cm
-
Exhaust Only
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
29 |
|
R.P.M.
|
1125 |
|
Air Volume (CMH) |
920 |
|
Air Volume (CFH) |
(32490) |
|
Noise dB (A) |
39 |
¡@
¡@ |
|
Item Code : |
31101 |
|
Model : |
FV-25AU |
|
|
|
Panasonic - Square Ventilating Fan
FV-30AU 12" Square Ventilating Fan
406x402x128mm Comply with IPX4 (outside)
-
New HP motoring & bearing that prolong the product
durability
-
Square
Type
-
12 "/
30cm
-
Exhaust Only
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
29 |
|
R.P.M.
|
1030 |
|
Air Volume (CMH) |
1200 |
|
Air Volume (CFH) |
(42380) |
|
Noise dB (A) |
39 |
|
|
Item Code : |
31121 |
|
Model : |
FV-30AU |
|
|
 |

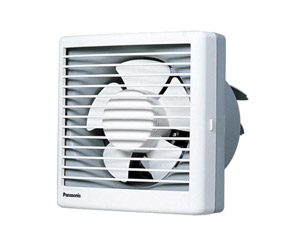

Panasonic - Square Ventilating Fan
FV-15WH 6" Square Ventilating Fan
-
Square Type
-
6" / 15cm
-
Exhaust Only
-
Electrically Operated Shutter
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
17 |
|
R.P.M.
|
1871 |
|
Air Volume (CMH) |
200 |
|
Air Volume (CFH) |
(7062) |
|
Noise dB (A) |
44 |
¡@
¡@
¡@
¡@ |
|
Item Code : |
31062 |
|
Model : |
FV-15WH |
|
|
|
Panasonic - Square Ventilating Fan
FV-20WH 8" Square Ventilating Fan
-
Square Type
-
8" / 20cm
-
Exhaust Only
-
Electrically Operated Shutter
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
20 |
|
R.P.M.
|
1300 |
|
Air Volume (CMH) |
444 |
|
Air Volume (CFH) |
(15680) |
|
Noise dB (A) |
42 |
|
|
Item Code : |
310602 |
|
Model : |
FV-20WH |
|
|
 |

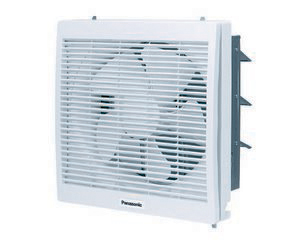

Panasonic - Square Ventilating Fan
FV-20DL 8" Square Ventilating Fan
-
New HP motoring & bearing that prolong the product
durability
-
Modern blade design, high air volume and low noise
level
-
Square type
-
8" / 20cm
-
Exhaust Only
-
Electrically Operated Shutter
-
Louver
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
22 |
|
R.P.M.
|
1210 |
|
Air Volume (CMH) |
560 |
|
Air Volume (CFH) |
(19280) |
|
Noise dB (A) |
38 |
¡@
¡@
¡@
¡@
¡@ |
|
Item Code : |
N20WUL |
|
Model : |
FV-20DL |
|
|
|
Panasonic - Square Ventilating Fan
FV-25DL 10" Square Ventilating Fan
-
New HP motor & bearing that prolong the product
durability
-
Modern blade design, high air volume and low noise
level
-
Square type
-
10" / 25cm
-
Exhaust Only
-
Electrically Operated Shutter
-
Louver
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
29 |
|
R.P.M.
|
1060 |
|
Air Volume (CMH) |
882 |
|
Air Volume (CFH) |
(29450) |
|
Noise dB (A) |
40 |
¡@
¡@
¡@
¡@
¡@
¡@ |
|
Item Code : |
NFV30AL |
|
Model : |
FV-25DL |
|
|
 |
Panasonic -
High Pressure Window Mount
Ventilating Fan
FV-15WJA
6" High Pressure Window Mount
Ventilating Fan
-
6" /
15cm
-
Dome
Shaped Hood with 2-Piece Shutter Design, Enables Operaton in
Light Rainy Days and Strong Wind
-
Powerful Airflow and Sustainable to High Static Pressure
-
Two
Speed Selectable
-
Stylish Design with Pearl White Color Louver
-
Easy
Installation and Clean
|
Air Direction |
Exhaust |
|
Voltage (V) |
220/220 |
|
Hz |
50/50 |
|
Power Consumption (Watt) |
27/24 |
|
R.P.M.
|
1960/1460 |
|
Air Volume (CMH) |
220/165 |
|
Air Volume (CFH) |
(7770)/(5830) |
|
Noise dB (A) |
47/38 |
¡@
¡@ |
|
Item Code
: |
NF15WJA |
|
Model : |
FV-15WJA |
|
|
 |

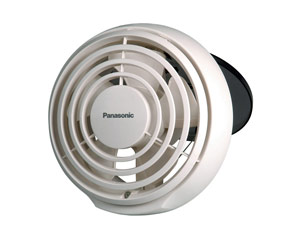

Panasonic - Round Ventilating Fan
FV-15WUL 6" Round Ventilating Fan
- 6"
-
Round Type
-
Exhaust Only
-
Cord-Operated Shutter
-
With Louver
-
Advanced Blade Design that minimizes fan noise
-
High Performance Condenser Motor for low power
consumption and long life use
-
Strengthened Shutter Structure that sustainable to
strong wing
¡@ |
|
Item Code
: |
N15WUL |
|
Model : |
FV-15WUL |
|
|
|
Panasonic - Round Ventilating Fan
FV-20WUL 8" Round Ventilating Fan
-
8" / 20cm
-
Round Type
-
Exhaust Only
-
Cord-Operated Shutter
-
With Louver
-
Advanced Blade Design that minimizes fan noise
-
High Performance Condenser Motor for low power
consumption and long life use
-
Strengthened Shutter Structure that sustainable to
strong wing
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
16 |
|
R.P.M.
|
1093 |
|
Air Volume (CMH) |
342 |
|
Air Volume (CFH) |
(12080) |
|
Noise dB (A) |
39 |
¡@ |
|
Item Code : |
N20WUL |
|
Model : |
FV-20WUL |
|
|
|
Panasonic - Square Ventilating Fan
FV-30AL 12" Square Ventilating Fan
-
New HP motoring & bearing that prolong the product
durability
-
Modern blade design, high air volume and low noise
level
-
Square Type
-
12" / 30cm
-
Exhaust only
-
Louver
|
Air Direction |
Exhaust |
|
Voltage (V) |
220 |
|
Hz |
50 |
|
Power Consumption (Watt) |
28.5 |
|
R.P.M.
|
905 |
|
Air Volume (CMH) |
935 |
|
Air Volume (CFH) |
(33020) |
|
Noise dB (A) |
39 |
¡@
¡@ |
|
Item Code
: |
NFV30AL |
|
Model : |
FV-30AL |
|
|
|
